  POE Extender POE1T2-611
Product Name:POE Extender POE1T2-611
Product S/N:21516311534
Specification:1 to 2 POE Extender
Product Feature:Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

POE extender:
Model:POE1T2-611

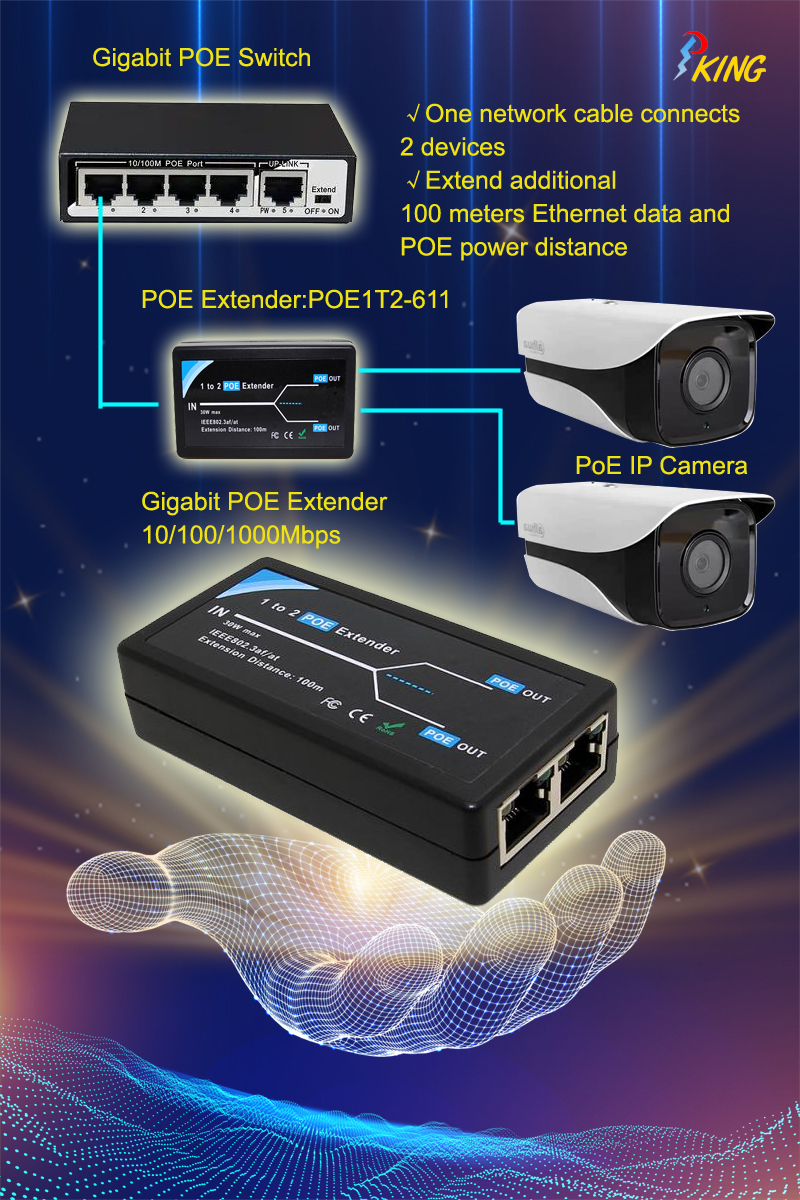

1 to 2 POE Extender
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m,
delivering both data and power to network devices such as WLAN Access Points and Network
Cameras up to adistance of 200m while complying with IEEE PoE and Datastandards.
The PoE Extender supports 10/100Mbps data rates and delivers 802.3af/at power levels, up to
15.4W,  The  PoE  Extender  does  not  require  local  power  and  is  powered  via  the  PoE
input.Extended PoE installation range by additional 100m
Supports 10/100M bps data rates
-Provides 802.3af power levels when powered by any 802.3at source
-Extenders can be cascaded to reach up to 700m
-Cost effective installation-noneed for local power
-Plug and play installation-noconfiguration needed

Features:
Comply with IEEE802.af/at Power over Ethernet
one POE to two POE,10/100M Supported
Extender the range of PoE an additional100meters
Automatically detects and protects PoE equipments from being damaged by
incorrect installation
Plug-and Play noconfiguration required
2 Port PoE extender can forward both Ethernet and PoE power for 1 terminal
equipment via Cat5,Cat5e,Cat6,Cat6e,UTPcable.
Product Review:
2-Port PoE Extenderhas 10/100M Lan ports,among them,one for power input,
the other for power output.Comply with 10/100BASE-TX,IEEE802.3af/at-PoE.
Power input for single port is 13W.Power output for single port is 12.2W.
ApplicableRange:
Used with AP,IP camera,IP telephone and the other network equipments in the
situation of the lack of power line or far away from the power outlets
Installed at hotels,schools,buildings,villages,etc.
Other Specification:
PoE input:1RJ45port
PoE output:2RJ45port
Network Medium:Cat5 or better UTP cables(lessthan120m)
Repeater Mode:Store and forward
MACA ddress Table:2K
Packet Buffer Memory:48Byte
Switching Capacity:400Mbps
PoE Standard:IEEE802.3af/at
Input power:30Watts
Output power:15Watts
Power Supply Type:1/2+,3/6-,ModeA,End-Span
Network  Protocol:  IEEE  802.3i-10BASE-T,  IEEE  802.3u:  100BASE-TX,  IEEE
802.3x-Flow Control,IEEE802.3af-Power over Ethernet;
Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage
Directive2014/35/EU,EMC Directive 2004/108/EC;
Storage Humidity:5%~90%,No Condensation;
Dimension:90x45x22mm  Weight:60g
Note:
Please don't place any heavy thing on the PoE extender;
To prevent the water seeping into the extender,please keep PoE extender away
wet environment;
Suggest   to  use  PoE  extender  indoors.When   installing  the  extender  in
outdoor,please install it in a waterproof place.

1 to 2 POE Extender Technical Parameter
Mode POE1T2-611
Number of Channel 2
Data Transmission Rate 10/100Mbps
PoE Pin Ouput 1/2(+), 3/6(-); MAX Power 30W
Indicators LED indicators are located on the RJ45 connector Power indicator: PoE enabled
Connectors Shielded RJ45, EIA 568A and 568B
Network Cable Shielded Cat5,Cat5e,Cat6 or better
Dimension 90mm*45mm*22mm
Physical Property Input Voltage: DC 44-57V Output Voltage: 48V Weight:60g
Condition Working temperature: -10°c to 45°c Working humidity: MAX to 90%, non-condensation MTBF: 100,000h at 25°c
Regulatory compliance IEEE802.3af/at, RoHS Compliant, CE, FCC
EMC FCC Part15, Class B
Extending Distance 100m
