 99.CCTV Accessories >> Video Anti-interference Device >> Video anti-interference device AID001

  Video anti-interference device AID001
Product Name:Video anti-interference device AID001
Product S/N:120809236
Specification:Lightening protection,anti-static.
Product Feature:Anti-interference Level:3
Product Class:99.CCTV Accessories
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

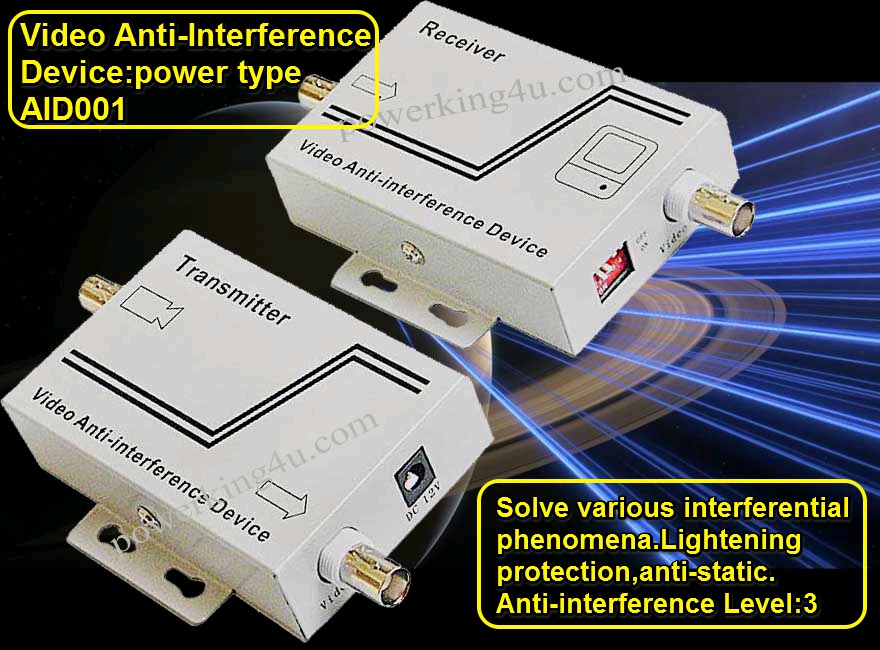

Product:Power-type Anti-interference Device
model:AID001

General Introduction:

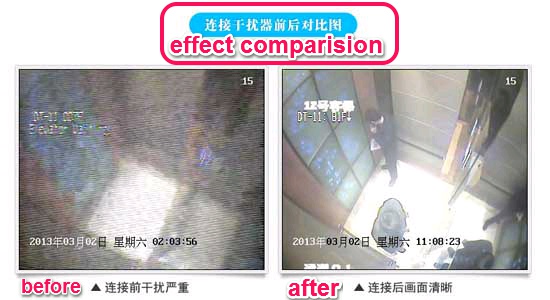

This power-type video anti-interference device is a kind of transmission electronic product which can transmit unrepeatered video image signal in an ordinary video cable for utmost 800 meters. It can solve various interferential phenomena such as power frequency, common mode and overlapping curve, etc. therefore mostly applied in weak interaction environment. This device can also provide lightening protection and anti-static function.

Transmission distance:

The transmission distance varies depending on the different wire cables. The specific transmission distance is as follows:
table for video cable transmission distance
cable type Max distance
SYV75-3

500m

SYV75-5(solid core) 750m
SYV75-7(soft core) 1000m
Notice:

 1. All above-mentioned tests are carried out to ensure that the image effect can reach 420 lines.

 2. All above-mentioned distance value is international standard wire cable testing value, and the actual transmission distance is related to the quality of the wire cable and the environmental temperature.

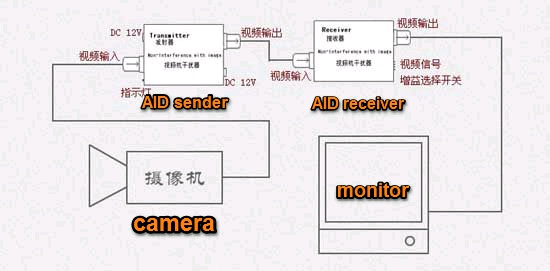

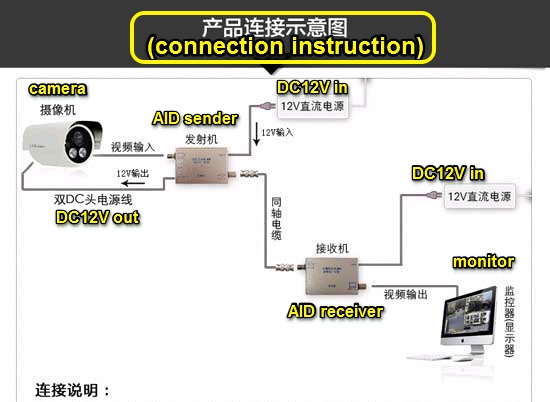

Connection Scheme:
