  POE ACCESSORY splitter PS009
Product Name:POE ACCESSORY splitter PS009
Product S/N:21516311530
Specification:POE ACCESSORY splitter PS009
Product Feature:POE ACCESSORY splitter PS009
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

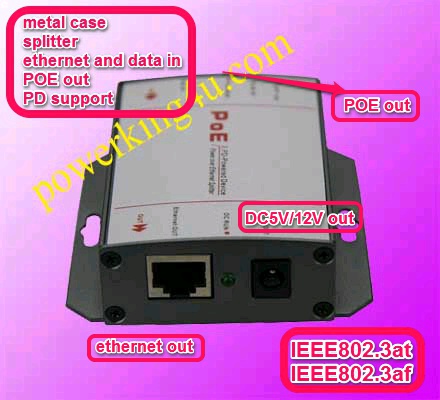

POE splitter PS009
Features
IEEE 802.3af-compliant
Provide 5V/12VDC optional output
The maximum transmission distance is 100 meters
Plug and play, no configuration
Small, compact, quiet design,it is convenient to be placed on the desktop or wall


Model: PS009
Interface inputs: one RJ45 interface
Outputs: one RJ45 connector and a DC output interface
Data transfer rate: 10 / 100Mbps;
The maximum transmission distance: 100 meters
Meet the basic requirements of IEEE 802.3af standard for power supply(PSE).
The maximum transmission distance is 100 meters
12VDC/5VDC 2 level output.
Plug and play, no configuration
Mean time between failures (MTBF): 190,000 hours (about 21 years)
Network protocols and standards-compliant IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af
Input indicator
PD output indicator
Physical Specifications Dimensions: 80 x 76 x 25 Haomi
Weight: 0.14kg
Environmental Specifications Operating Temperature: 0 ° ~ 55 ° C
Storage temperature: -20 ° ~ 75 ° C
Humidity: 10% to 90%, non-condensing
Storage humidity: 10% to 95%, non-condensing
Working height: 3,000 meters (10,000ft)
Storage Elevation: 3,000 meters (10,000ft)
Radiation CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety CE Mark, commercial
CE / LVD EN60950
Warranty 1 year warranty
Package Contents POE splitter
Installation Guide


products Description:
Product Type Model Description
PS007 PoE splitter, PD, IEEE802.3af 5V / 12V, 15.4W, support 10 / 100M
PS008 PoE splitter, PD, IEEE802.3at 5V / 12V, 25.5W, support 10 / 100M
PS009 PoE splitter, PD, IEEE802.3af 5V / 12V, 15.4W, support 10/100 / 1000M
PS010 PoE splitter, PD, IEEE802.3at 5V / 12V, 25.5W, support 10/100 / 1000M

typical application
Can be used with POE power supply equipment or splitters.
Can be used in a network environment which is absent of the power cord or far away from a power outlet.
Can psupply power for AP, router, IP cameras, IP phones and other network equipment supply.
