  POE ACCESSORY splitter PS001
Product Name:POE ACCESSORY splitter PS001
Product S/N:21516311525
Specification:POE ACCESSORY splitter PS001
Product Feature:POE ACCESSORY splitter PS001
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

PoE splitter PS001:
input DC40V-57V
output:DC12V, 15.4W,
IEEE802.3af
support 10 / 100M
International standard,
PCS

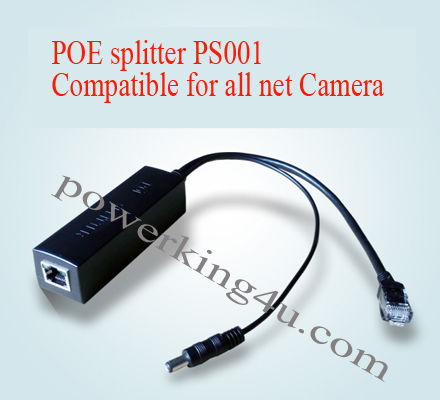

PS001 One Channel 10/100M IEEE802.3af PoE Splitter
The PS001 PoE Splitter is designed by Powerking which is used for splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Support PoE applications in fast Ethernet environments.
The modules compliant with IEEE 802.3af power classification and support PSE Alternative A and Alternative B connections. Maximum power output can reach 12W. Tiny size, 80mm (L) x 27mm (W) X 22mm (H), wide input voltage range, 36Vdc to 57Vdc and less external components needed one output decoupling capacitor.


Product Features:

l         Complies with IEEE802.3af.

l         Support PoE applications in fast Ethernet environments.

l         Auto-Sensing Algorithm enables taking power from IEEE802.3af PSE.

l         Splits the 48VDC power over RJ45 Ethernet cable into different DC output.

l         Support wide input voltage range 36Vdc to 57Vdc.

l         Maximum power output up to 12W.

l         Output 12VDC/1A.

l         Thermal cut off.

l         Short circuit protection.

l         High efficiency DC/DC converter.

l         LED indicators for power input indication.

l         Plug-and-Play.


Product Specifications:

Item

Description

Input

1 10/100 RJ45 PoE Port (DATA + POWER IN)

Output

1 10/100 RJ45Cable (Only DATA)

1 DC Jack Cable (DC OUT)

Network Media

10Mbps: Cat 3,4,5 Unshielded Cable

100Mbps: Cat 5,5E Unshielded Cable

Pass Through Data Rates

10/100Mbps

Power Output

12VDC/15.4W

Input Power Requirements

DC Input Voltage: 36 to 57 Vac

Indicators

PoE ready / in-use

Connectors

Shielded RJ-45, EIA 568A and 568B

Dimensions

80x27x22mm

Environmental Conditions

Operating Ambient Temperature:0 to 40℃

Operating Humidity:

Maximum 90%, Non-condensing

Storage Temperature:-20 to 70℃

Storage Humidity:

Maximum 95%, Non-condensing

Regulatory Compliance

IEEE 802.3af (PoE)

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)
