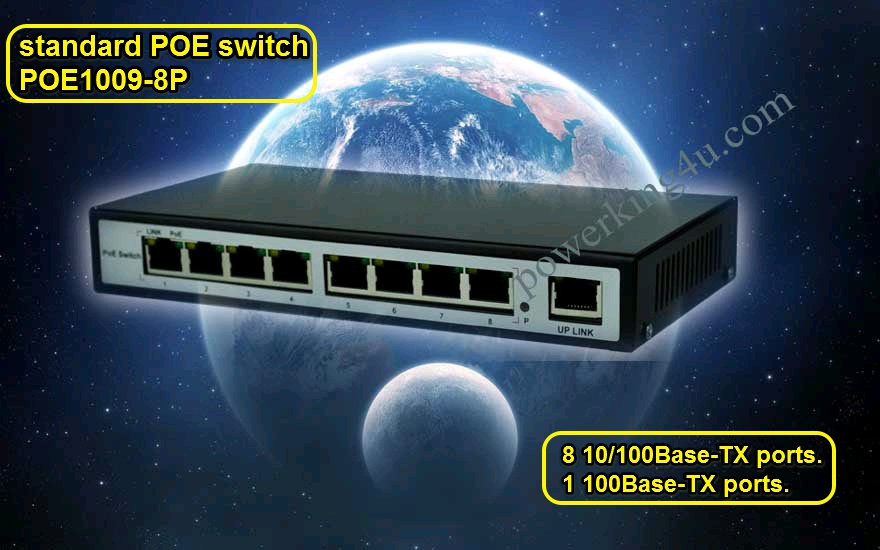

9 RJ-45 10/100M ports with 8 POE Ports Switch with power adapter
Products Description:
The POE1009-8P, an unmanaged Fast-Ethernet switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections.
The POE1009-8P provides 9 10/100Base-TX ports. It provides 8 PoE Injector.
Product Features:
• Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
• Provides 9 10/100Base-TX ports
• Provides 8 PoE injector and 65W/130W power adapter
• High back-plane bandwidth 1.8Gbps
• IEEE802.3x Flow control
• Surge protection for power port and data ports
• EMI standards complies with FCC, CE class B
Product Specifications:
|
Item |
Description |
|
Summarize |
|
Fixed port |
8 10/100Base-TX ports.
1 100Base-TX ports. |
|
LED Indicators |
PWR, PoE, Link/Act LED. |
|
Input voltage |
100V～240V AC，50/60Hz (for power adapter)
48VDC (for PoE switch) |
|
Power consumption |
65W/130W (62W/125W for PoE) |
|
Operating temperature |
0℃～40℃. |
|
Storage temperature |
-10℃～70℃. |
|
Relative humidity |
20%～85% (non-condensing). |
|
Thermal methods |
Fanless. |
|
Switching capacity |
1.8G. |
|
MAC address table |
4K. |
|
Traffic control |
IEEE 802.3x full-duplex flow control. |
|
Size |
205*122*33.5cm |
|
PoE |
|
PoE port |
4/8 10/100Base-TX ports. |
|
PoE Standard |
IEEE802.3af, IEEE802.3at, per port 30W(MAX),
Total 65W/125W. |
|
Pin assignment |
V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2). |
Order Information:
|
POE1009-8P-125 |
9 ports Unmanaged Switch with 8 PoE injector (125W) | |
