ITEM

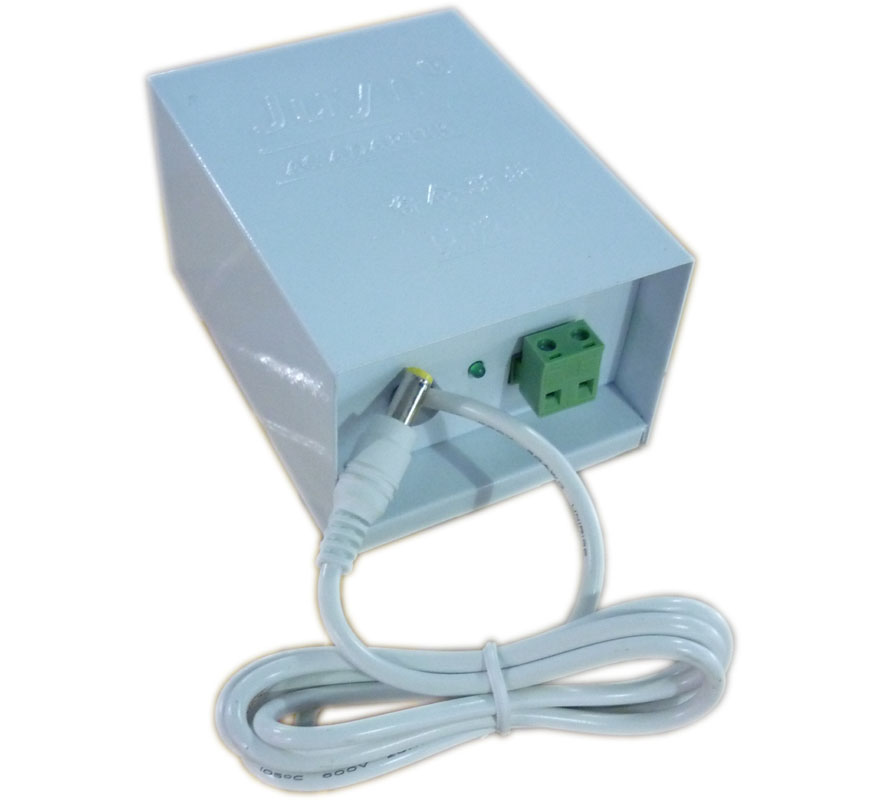

PKR12V2.5A

Description

12 V 2.5A DC

Housing

Housing No:PKR12V2.5A

Input

Input Connector

Screw terminal

I nput voltage

AC220V50/60Hz

Output

Output Connector:

Screw terminal

Output voltage:

12V DC

Outputelectric current:

2500MA

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ～ 150% kvA ,PTC fuse

overvoltage protection

30% ～ 150% V AC ,PTC fuse

short-circuit protection

1 channel ：PTC fuse

Environment

working temperature :

0℃ ～ 40℃,10% ～ 90%RH

Store temperature :

-20℃ ～ 85℃,10% ～ 90%RH

ASL :

<3000m

Size

Cooling:

Environment

Size:

130*80*33 mm

weight :

0.4kG
